Stationary dislocations

FCC Al, Mishin EAM potential, 2197 atoms per element in the coarse-grained domain. Results using larger models and/or in other metals are published in Xu et al., 2015 and Xu et al., 2016.

In the figures below, the atoms that fill in the jagged interstices are not shown for a better visualization of the elements; the nodes are colorred by the in-plane shear stress. Langevin dynamic simulation at 10 K is carried out, with periodic energy minimization using the conjugate gradient method.

Edge dislocation

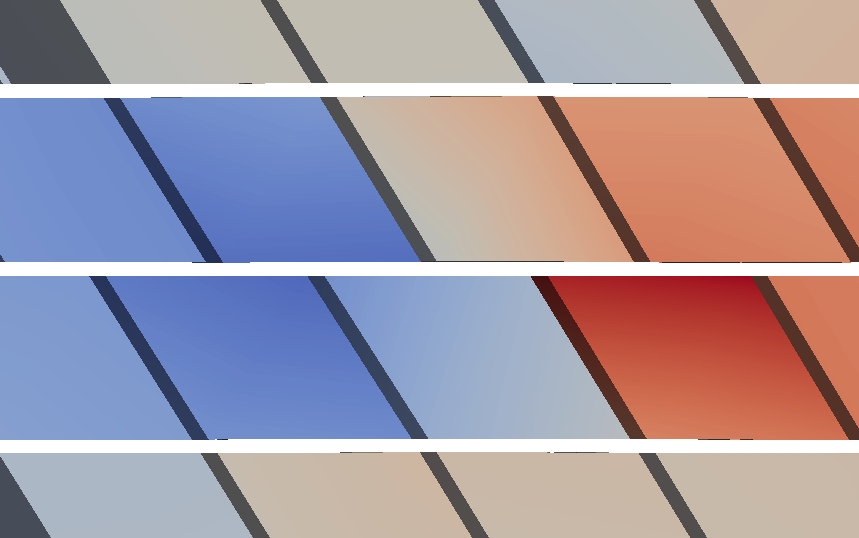

The figure below and the logfile are produced using the input file and rendered by ParaView.

Screw dislocation

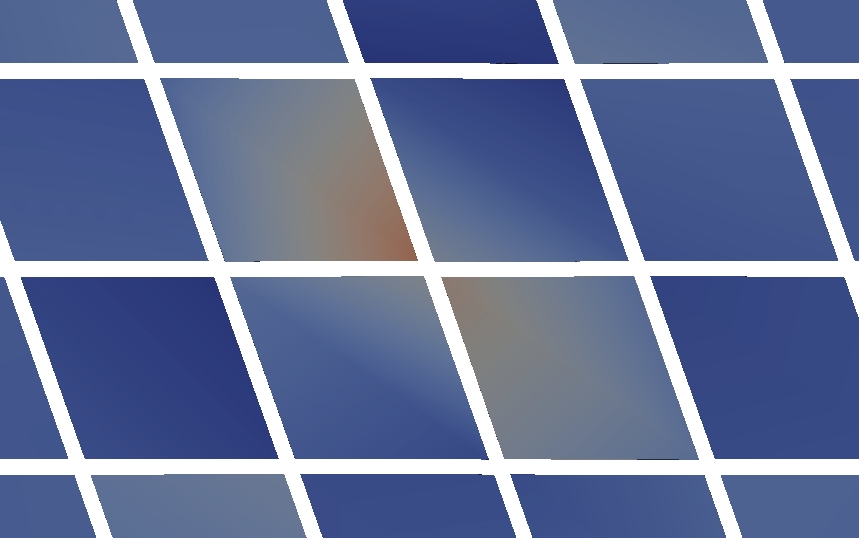

The figure below and the log file are produced using the input file and rendered by ParaView.

$30^\circ$ mixed type dislocation

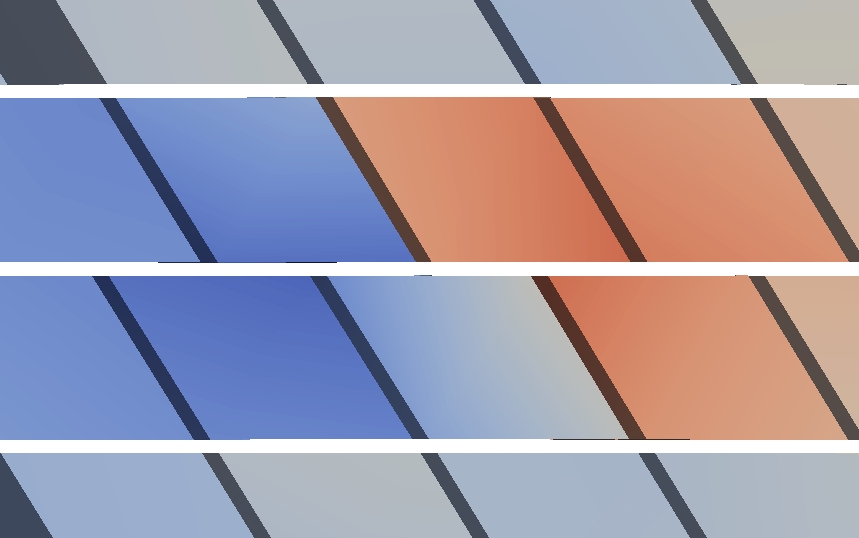

The figure below and the log file are produced using the input fileand rendered by ParaView.

$60^\circ$ mixed type dislocation

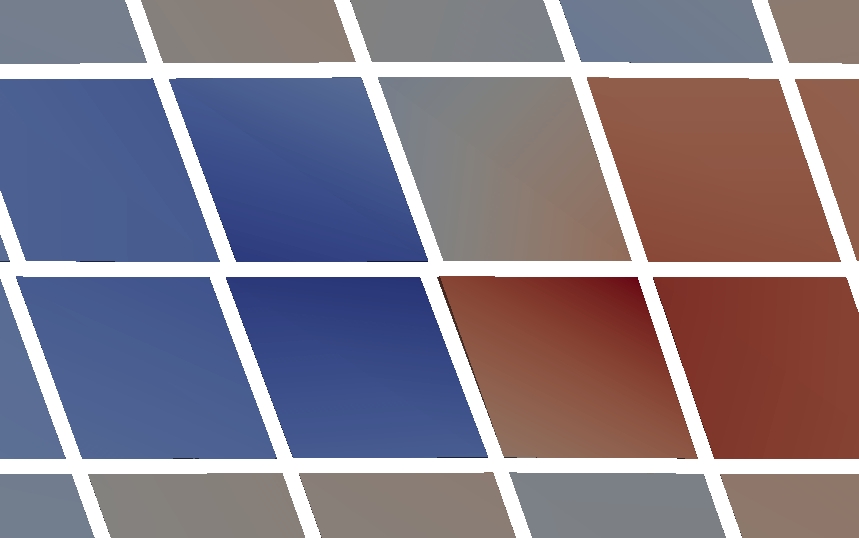

The figure below and the log file are produced using the input fileand rendered by ParaView, similar to Fig. 8(c) of Xu et al., 2015.
